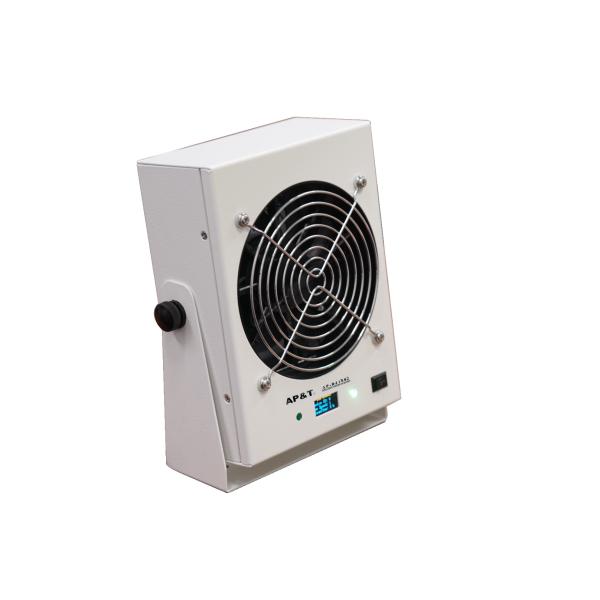

AP-DJ1802 electrostatic ionizing air blower remove static blowers
Features
1, LED display shows ID address , fan speed and cleaning time
2, Duty ratio of positive and negative ioniziing output adjustable to adjust ionizing balance
3, default auto-cleaning time every 8 hours, Artificial emitter cleaning maintenance free
4, 8 emitters makes high ion volume and fast delivery time
5, Four gears of stable fan speed
6, Auto-cleaning when switch on
7, Ionizing output characteristics adjustable by remote control
8, Audible and visual alarm when fan breakdown and ionization abnormal
Specification
| Model No | AP-DJ1802 |
| Input voltage | DC 24V |
| Input current | ＜0.6A |
| Output voltage | DC±4KV→±5KV |
| Power | ＜14.5W |
| Ion emit | DC |
| Coverage | 750*300mm(L*W) |
| Air volume | 0-179CFM |
| Noise | ＜75dBA(150mm from air outlet) |
| Ozone thickness | ≤0.05ppm(150mm from air outlet) |
| Ion balance | ≤|±10V| |
| Decay speed | ≤1.5S(300mm from air outlet) |
| Alarm indication | Normal working -Green light(Under monitoring) Fan alarm -Red light flash with beeping Ionization abnormal-Red light slow flash with beeping Blue light blinks when infrared debugging |
| Working temperature | 0℃-50℃ |
| Working humidity | ＜70%RH |
| Dimension | 141*70*205.5mm(L*W*H) |
| Power adaptor | INPUT:AC100—250V 50/60Hz； |
| certificate | CE standard |
| warranty | 1 year |
Elimination Effect
Testing standard:ANSI/ESD.STM3.1,ANSI/ESD.SP3.3,SJ/T 11446—2013
Testing instrument:Trek157 Static tester
Testing voltage:±1000V → ±100VAttenuation
Testing environment :Humidity50±5%；Tempertaure:23±3℃
